15k hammer

innovative piling equipment

hph

hydraulic impact hammers

over view >

hammer range
HPH1200 >
HPH1800e >
HPH2400e >
HPH4500 >
HPH6500 >
HPH15,000 >
NEW central ram design
HPH2500 >

specification sheet
technical details >
bearing capacity >

additonal information
power packs >
electrical switching >
additional equipment >
spreader plates >

video /photo gallery >

HPH1200

SPECIFICATION	HPH1200
UNITS	METRIC
RAM WEIGHT	1,040kg
IMPACT VELOCITY	4.76 m/s
MAX. IMPACT ENERGY	1,200 kgm
MAX. MOMENTUM	4,950 kg.m/s
BLOW RATE	80-120 bpm

HPH1800

SPECIFICATION	HPH1800
UNITS	METRIC
RAM WEIGHT	1,500kg
IMPACT VELOCITY	4.99 m/s
MAX. IMPACT ENERGY	1,900 kgm
MAX. MOMENTUM	7,485 kg.m/s
BLOW RATE	80-120 bpm

HPH2400

HPH2400

SPECIFICATION	HPH2400
UNITS	METRIC
RAM WEIGHT	1,900kg
IMPACT VELOCITY	4.98 m/s
MAX. IMPACT ENERGY	2,400 kgm
MAX. MOMENTUM	9,462 kg.m/s
BLOW RATE	80-120 bpm

HPH4500

SPECIFICATION	HPH4500
UNITS	METRIC
RAM WEIGHT	3,500kg
IMPACT VELOCITY	5.05 m/s
MAX. IMPACT ENERGY	4,500 kgm
MAX. MOMENTUM	17,675 kg.m/s
BLOW RATE	80-120 bpm

HPH6500

SPECIFICATION	HPH6500
UNITS	METRIC
RAM WEIGHT	4,650kg
IMPACT VELOCITY	5.25 m/s
MAX. IMPACT ENERGY	6,500 kgm
MAX. MOMENTUM	24,413 kg.m/s
BLOW RATE	80-120 bpm

HPH15000

SPECIFICATION	HPH15000
UNITS	METRIC
RAM WEIGHT	12,000kg
IMPACT VELOCITY	5.00 m/s
MAX. IMPACT ENERGY	15,000 kgm
MAX. MOMENTUM	60,000 kg.m/s
BLOW RATE	80-120 bpm

HPH2500

HPH2500

SPECIFICATION	HPH2500
UNITS	METRIC
RAM WEIGHT	2,100kg
IMPACT VELOCITY	4.98 m/s
MAX. IMPACT ENERGY	2500 kgm
MAX. MOMENTUM	9,462 kg.m/s
BLOW RATE	80-120 bpm

emv

excavator mounted vibrator

overview >
emv range
EMV70 >
EMV220 >
EMV300 >
EMV450 >
EMV550 >
specification sheets
selection guide >
technical details >
installation guide >
additional equipment
chain clamp >
swan neck >
adaptor bracket >
quick hitch adaptor >
video / photo gallery >

EMV70

emv70

SPECIFICATION	EMV70
UNITS	METRIC
STATIC MOMENT	0.7kgm
FREQUENCY	3,000 rpm
CENTRIFUGAL FORCE	70KN
TOTAL MASS	510 kg
CLAMP FORCE	30 tonne

EMV220

emv220

SPECIFICATION	EMV220
UNITS	METRIC
STATIC MOMENT	2.3kgm
FREQUENCY	3,000 rpm
CENTRIFUGAL FORCE	220KN
TOTAL MASS	580 kg
CLAMP FORCE	26.5 tonne

EMV300

emv300

SPECIFICATION	EMV300
UNITS	METRIC
STATIC MOMENT	4.6kgm
FREQUENCY	2,400 rpm
CENTRIFUGAL FORCE	300KN
TOTAL MASS	965 kg
CLAMP FORCE	36 tonne

EMV450

emv450

SPECIFICATION	EMV450
UNITS	METRIC
STATIC MOMENT	6.8kgm
FREQUENCY	2,460 rpm
CENTRIFUGAL FORCE	453KN
TOTAL MASS	1,275 kg
CLAMP FORCE	54 tonne

EMV550

emv550

SPECIFICATION	EMV550
UNITS	METRIC
STATIC MOMENT	8.23kgm
FREQUENCY	2,500 rpm
CENTRIFUGAL FORCE	564KN
TOTAL MASS	1,500 kg
CLAMP FORCE	66 tonne

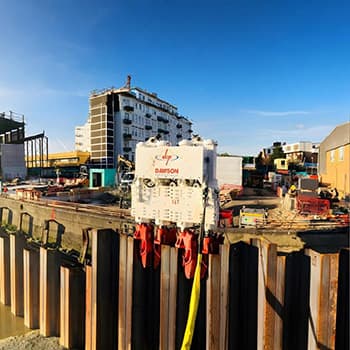

csv

crane suspended vibrator

overview >
csv range
CSV300 >
CSV450 >
CSV550 >
specification sheet
technical details >
larger vibros >
video / photo gallery >

CSV300

csv300

SPECIFICATION	CSV300
UNITS	METRIC
STATIC MOMENT	4.6kgm
FREQUENCY	2,400 rpm
CENTRIFUGAL FORCE	300KN
TOTAL MASS	1,520 kg
CLAMP FORCE	36 tonne

CSV450

csv450

SPECIFICATION	CSV450
UNITS	METRIC
STATIC MOMENT	6.9kgm
FREQUENCY	2,460 rpm
CENTRIFUGAL FORCE	450KN
TOTAL MASS	1,860 kg
CLAMP FORCE	54 tonne

CSV550

csv550

SPECIFICATION	CSV550
UNITS	METRIC
STATIC MOMENT	8.3kgm
FREQUENCY	2,500 rpm
CENTRIFUGAL FORCE	550KN
TOTAL MASS	2,380 kg
CLAMP FORCE	66 tonne

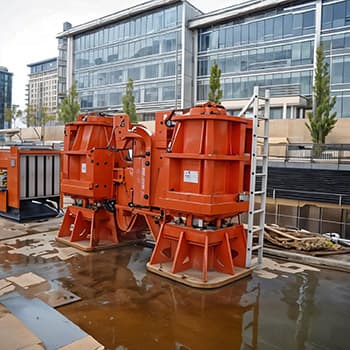

silent press

push pull system

overview >
2 Ram Press >
3 Ram Press >
4 Ram Press >
specification sheets
technical details >
video / photo gallery >

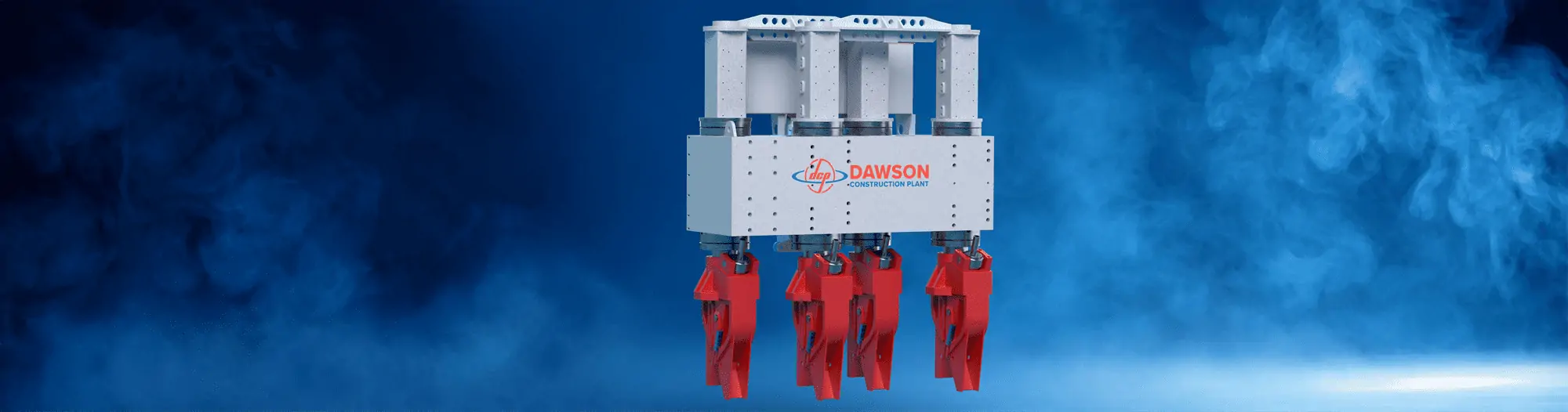

2 Ram Press

2 ram press

SPECIFICATION	2 RAM
UNITS	METRIC
PRESSING FORCE PER RAM	2,078kN
WEIGHT	7,000 rpm
REQUIRED HYDRAULIC PRESSURE	350 bar
MIN. HYDRAULIC FLOW RATE	350 l/min

3 Ram Press

3 ram press

SPECIFICATION	3 RAM
UNITS	METRIC
PRESSING FORCE PER RAM	2,078kN
WEIGHT	13,000 kg
REQUIRED HYDRAULIC PRESSURE	350 bar
MIN. HYDRAULIC FLOW RATE	350 l/min

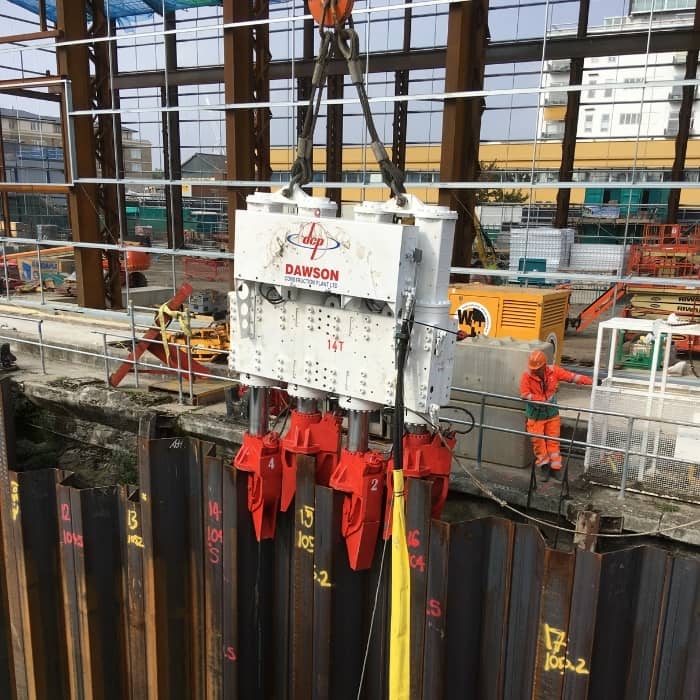

4 Ram Press

4 ram press

SPECIFICATION	4 RAM
UNITS	METRIC
PRESSING FORCE PER RAM	2,078kN
WEIGHT	13,000 kg
REQUIRED HYDRAULIC PRESSURE	350 bar
MIN. HYDRAULIC FLOW RATE	350 l/min

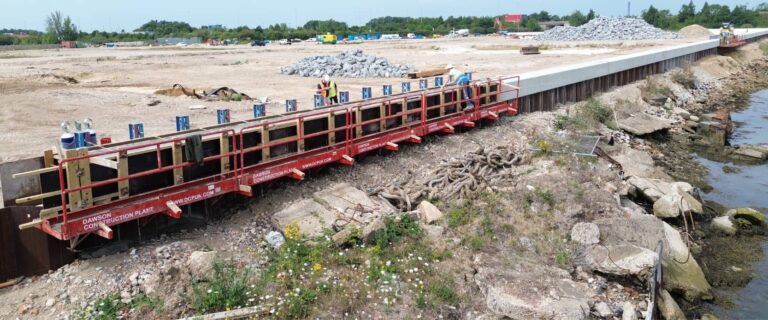

safety

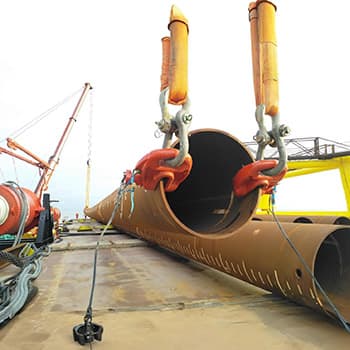

lifting equipment

overview >
ground release lifting shackle >
ratchet release lifting shackle >
steel handling shoe >
pipe lifting shoe >
ratchet release beam shackle >
pile extraction clamp >
100t Remote Release Shackle >
video / photo gallery >

remote release shackle

egrs

SPECIFICATION	EGRS
MODEL	DESCRIPTION
5983	4T, 150 Throat
5984	7.5T, 150 Throat
5985	10T 150 Throat
5986	7.5T 250 Throat
5987	10T 250 Throat

remote release shackle

errs

SPECIFICATION	ERRS
MODEL	DESCRIPTION
681	3.5T, 150 Throat
682	3.5T, 250 Throat
683	5T 150 Throat
684	5T 250 Throat
686	7.5T 250 Throat
687	10T Throat
688	10T, 150 Throat
689	7.5T, 250 Throat
692A	7.5T 300 Throat
693A	10T 300 Throat
6962A	40T 250 Throat

threaders

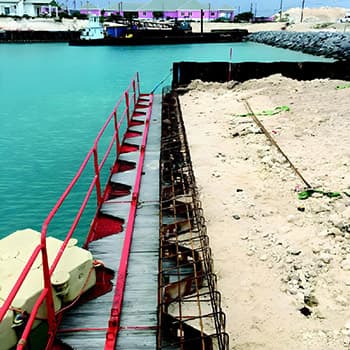

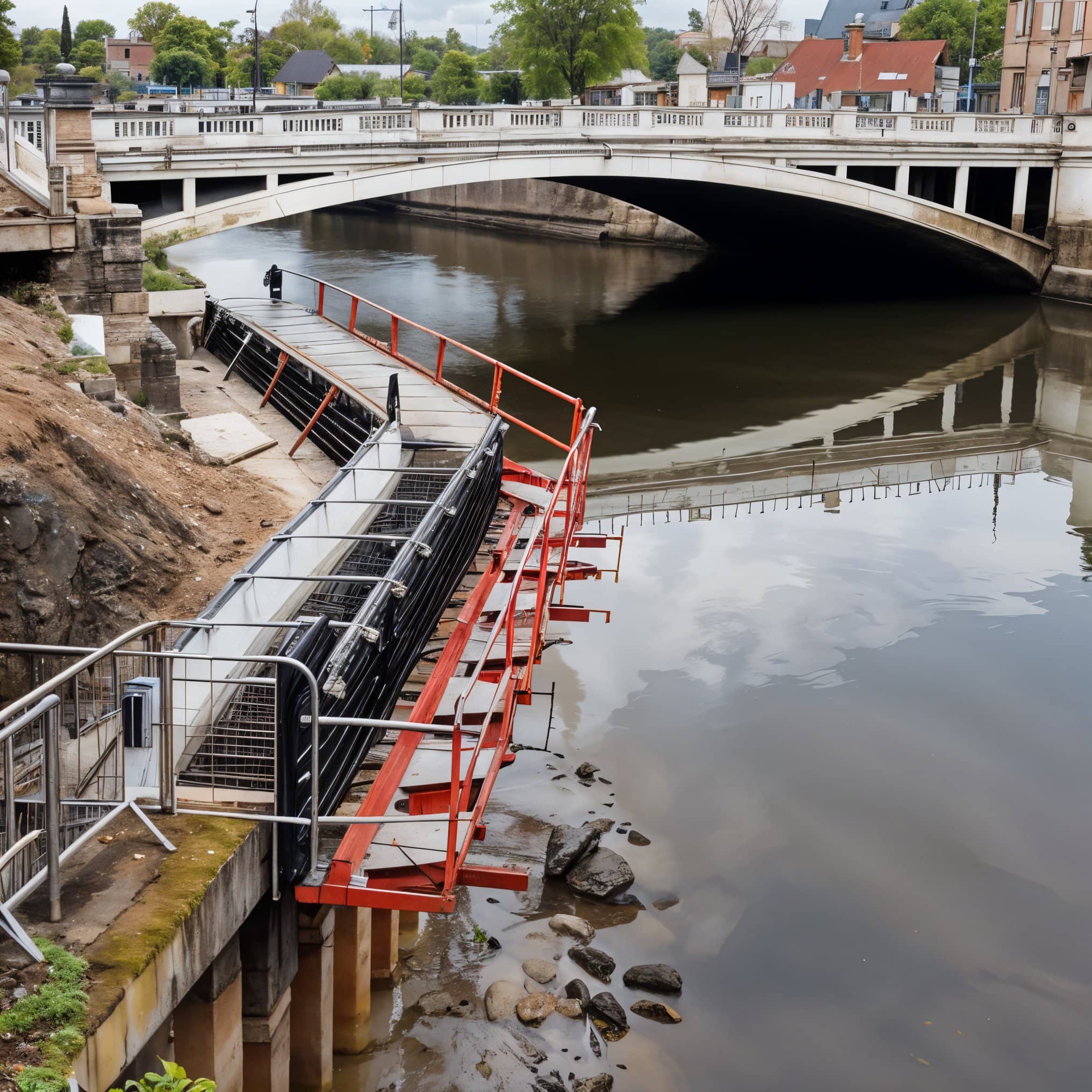

sheet pile threader
