Central Ram Hammers
CRH2500, CRH5000, CRH10000

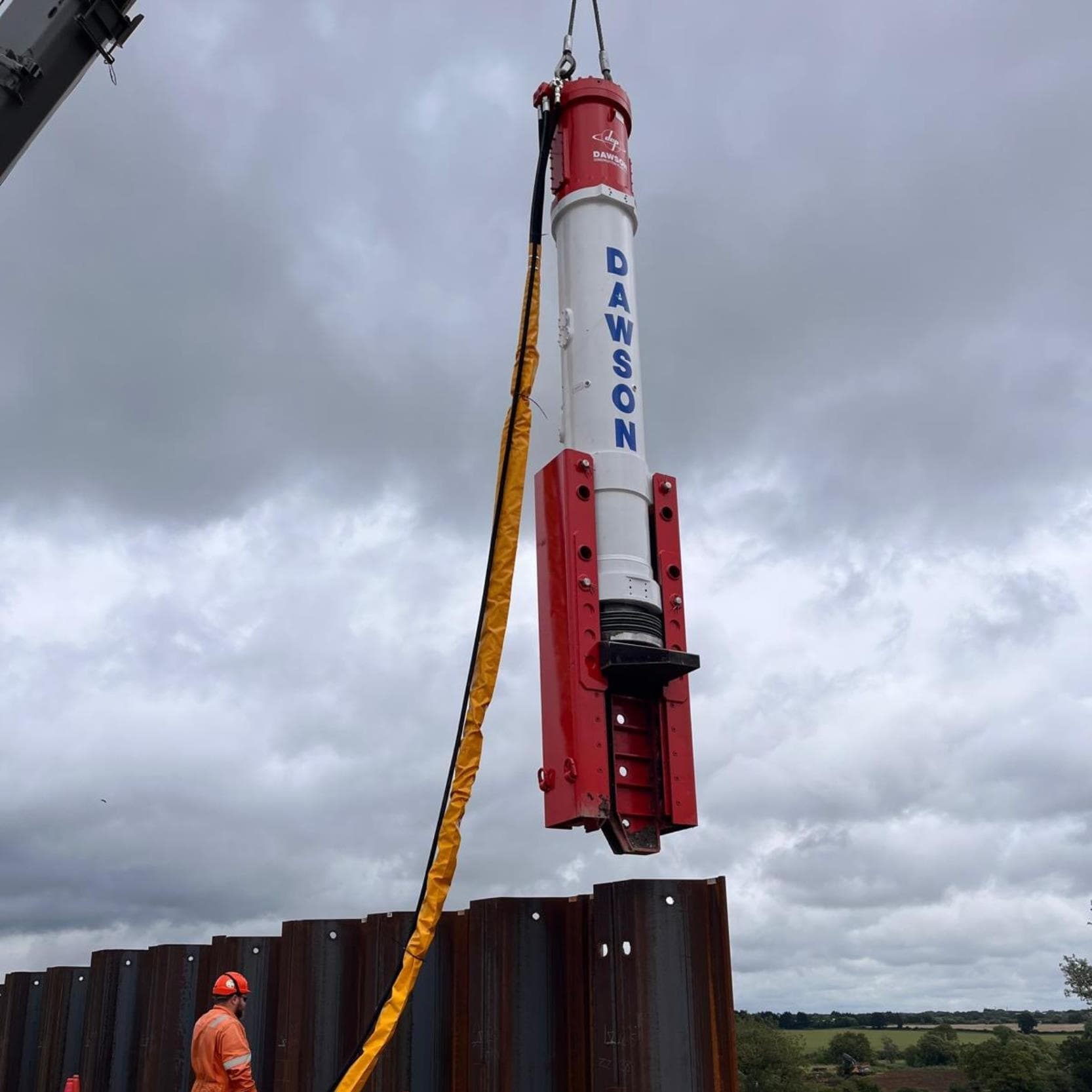

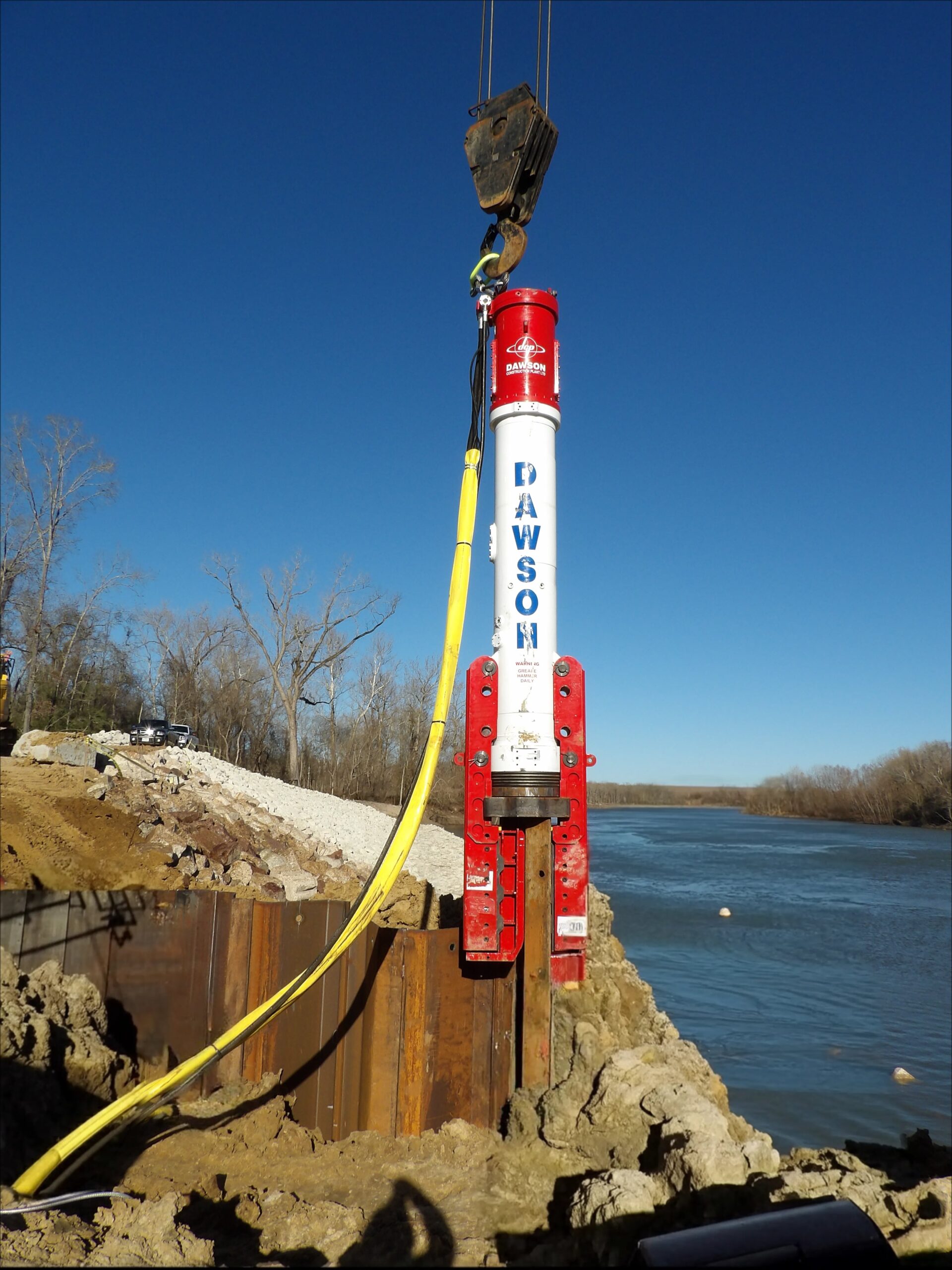

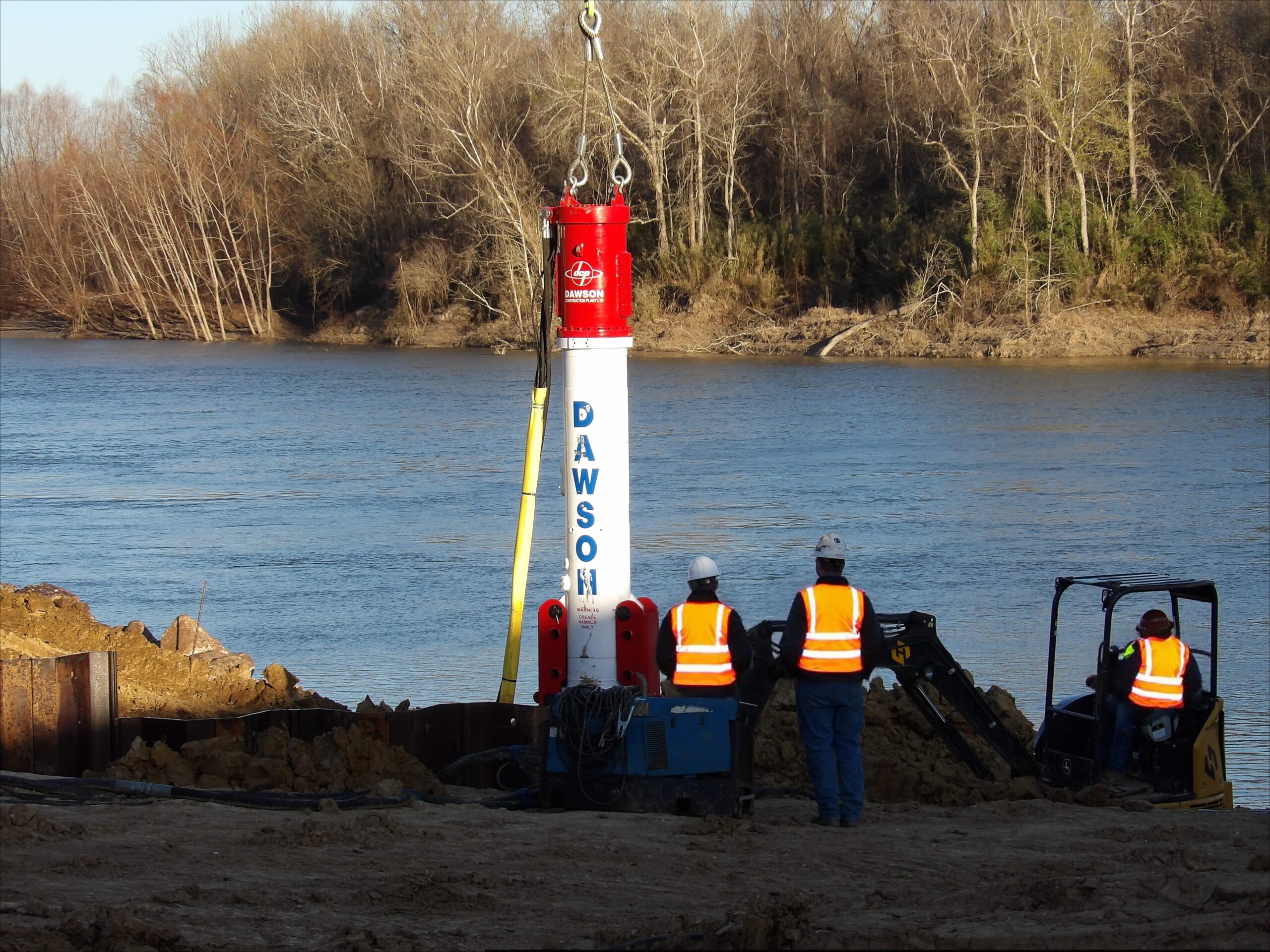

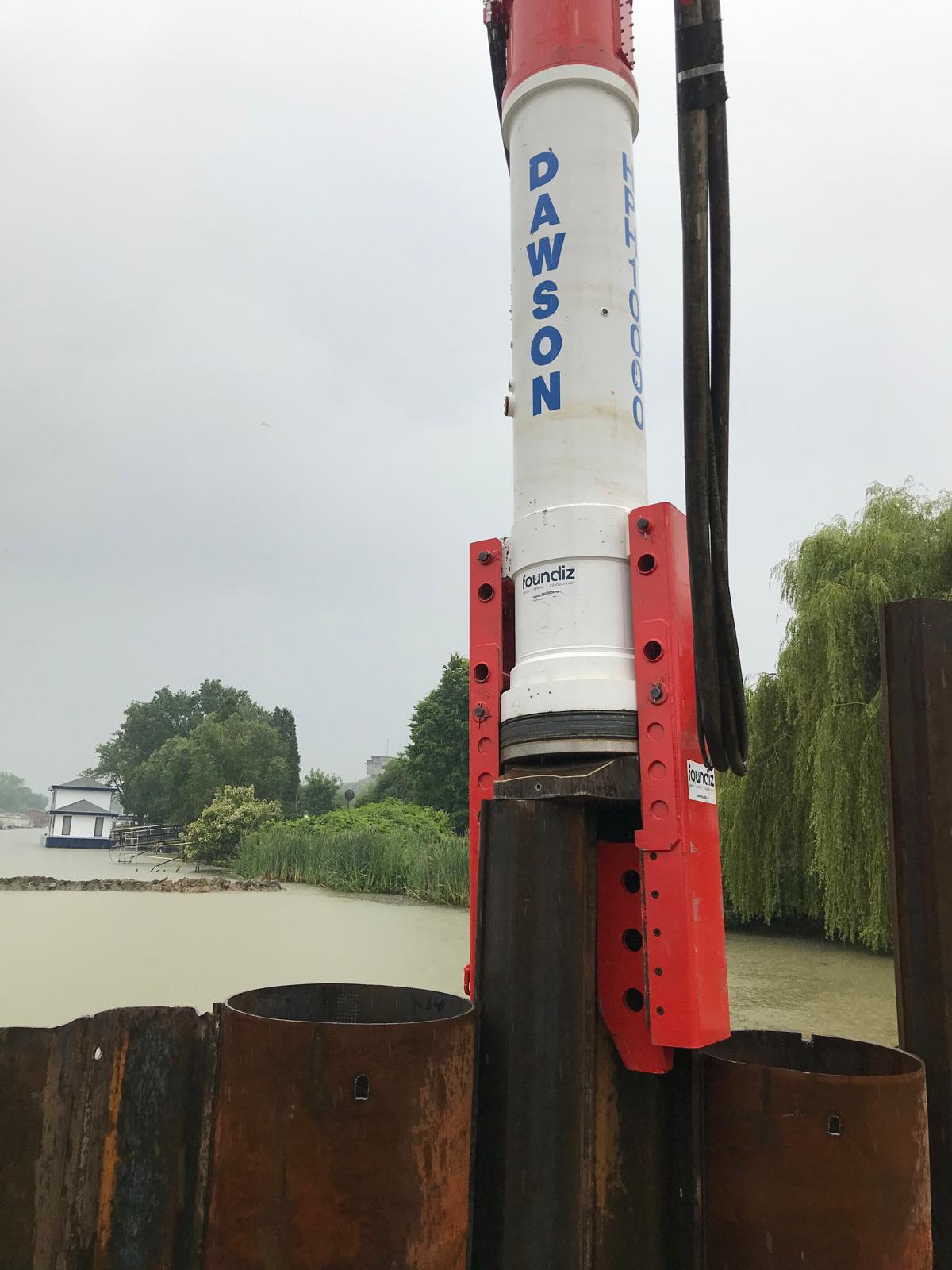

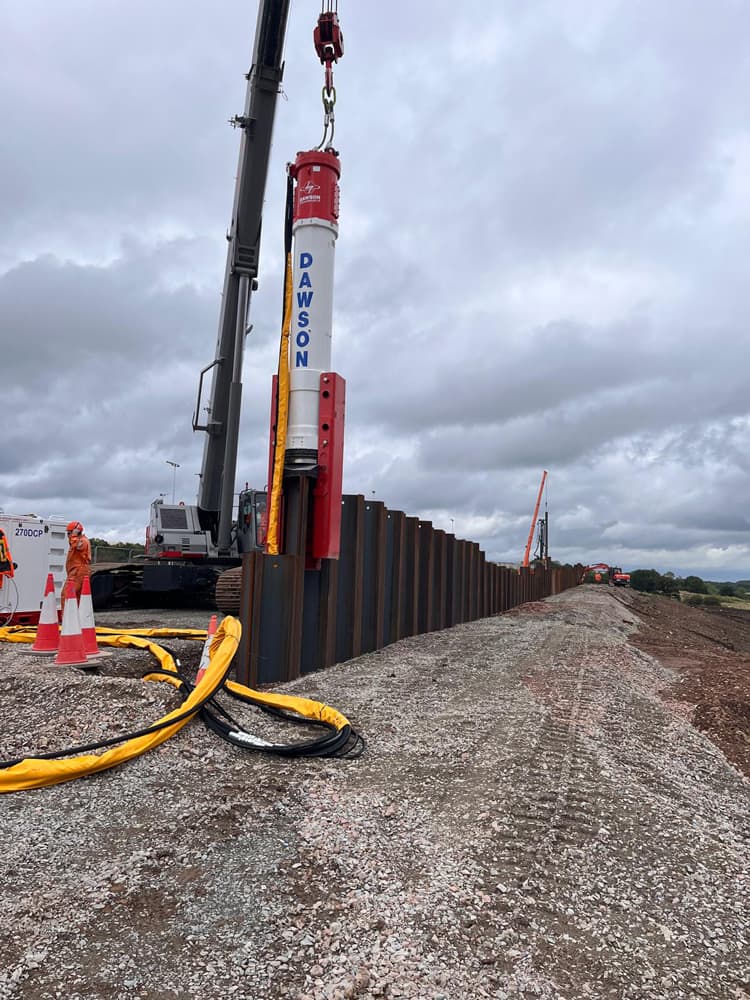

Hydraulic Piling Hammer – Fast, Powerful, and Reliable
Maximise efficiency and productivity with our Hydraulic Piling Hammer, designed for rapid pile penetration and superior energy transfer. Built for reliability, ease of maintenance, and intelligent performance tracking, this hammer ensures seamless operation on-site.
Key Benefits:
✔Faster Pile Driving – High hammer blow rate accelerates penetration, reducing project time.
✔Real-Time Performance Monitoring – On-screen energy tracking and full hammer history for optimal efficiency.
✔Minimal Maintenance – Few serviceable parts with built-in fault diagnostics for quick troubleshooting.
✔Tough & Reliable – Durable electrical switching and cushion block technology to absorb peak stresses.
✔Universal Compatibility – Adapts to tubes up to Ø914mm (36”) and fits most ‘U,’ ‘Z,’ and H sheet piles with interchangeable inserts.
Available for Hire & Purchase ✅
| Specification | Units | CRH2500 | CRH5000 | CRH10000 |
|---|---|---|---|---|
| Hammer Ram Weight | kg | 2,040 | 4,068 | 8,000 |
| Impact Velocity | m/s | 4.98 | 5 | 5 |
| Maximum Impact Energy | kNm | 25 | 50 | 100 |
| Maximum Momentum | kg·m/s | 10,160 | 20,340 | 40,000 |
| Blow Rate | bpm | 80-120 | 80-120 | 60-120 |
| Weight (with sheet pile legs + spreader plate) | kg | 7,000 | 11,000 | 18,000 |
Watch our hammer in action (Previously known as HPH)
| Specification | Units | CRH2500 | CRH5000 | CRH10000 |
|---|---|---|---|---|
| Hammer Ram Weight | lbs | 4,488 | 8,968 | 17,650 |
| Impact Velocity | ft/s | 16.3 | 16.36 | 16.4 |
| Maximum Impact Energy | ft-lb | 18,439 | 36,878 | 73,750 |
| Maximum Momentum | lbs·ft/s | 73,488 | 147,120 | 289,460 |
| Blow Rate | bpm | 80-120 | 80-120 | 60-120 |
| Weight (with sheet pile legs + spreader plate) | lbs | 15,400 | 24,250 | 39,682 |
Dawson Construction Plant has developed an industry leading, robust and simple, electronic control system that constantly monitors the drop weight position. This constant monitoring allows the switching timing on the main hydraulic spool to be trended to continually optimize hammer performance throughout varying piling conditions, such as:
1 – Hard driving with pile recoiling.
2 – Soft driving with a running pile.
3 – Cold hydraulic oil on start up.
4 – Raking piles.
