Pile Extractor
X400, X1000

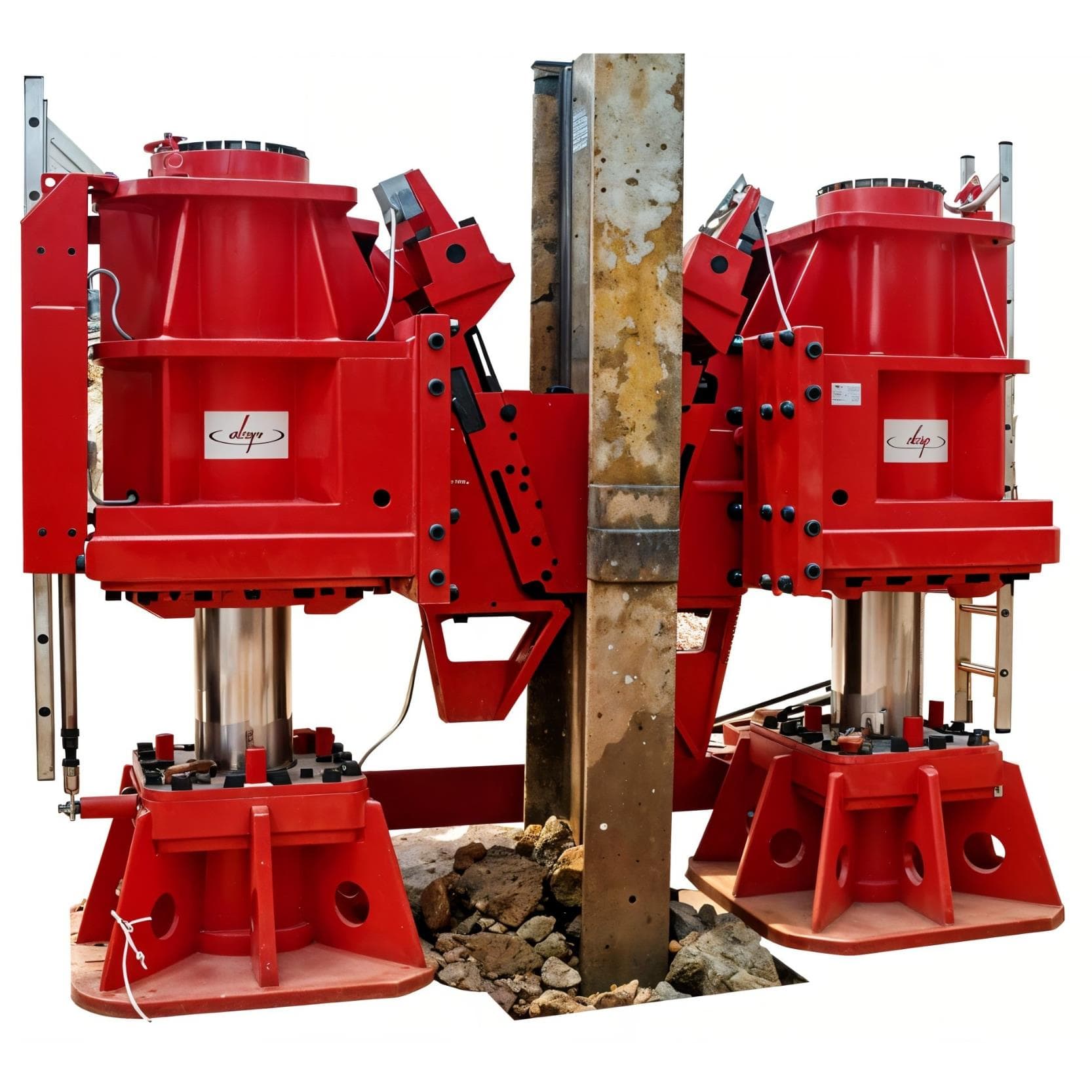

D.C.P. Universal Pile Extractor – Powerful, Quiet & Vibration-Free Sheet Pile Extraction
Maximise efficiency and minimise site disruption with the D.C.P. Universal Pile Extractor, the ultimate hydraulic pile extraction system. Engineered for power and precision, this vibration-free, noise-reducing solution is ideal for safely removing a wide range of pile types from diverse ground conditions—without compromising structural integrity or surrounding environments.
✔ Vibration-Free Operation – Protects surrounding structures and ensures safer extractions in sensitive environments.
✔ Quiet Performance – Reduces noise pollution, making it ideal for urban and residential projects.
✔ Unmatched Extraction Power – Delivers a massive 400 to 1000 tonnes of force, effortlessly removing even the most stubborn piles.
✔ Versatile Application – Handles various pile types and ground conditions with ease.
Upgrade your pile extraction process with the D.C.P. Universal Pile Extractor—where power meets precision.
Available for Hire & Purchase ✅
| Specification | Units | X400 | X1000 |
|---|---|---|---|
| Maximum extraction force | kN | 4,000 | 9,700 |
| Ram speed | m/min | 3 | 3 |
| Maximum hydraulic oil pressure | bar | 200 | 350 |
| Maximum hydraulic oil flow | L/min | 300 | 400 |
| Extraction distance (each stroke) | mm | 750 | 500 |
| Specification | Units | X400 | X1000 |
|---|---|---|---|
| Maximum extraction force | tons | 408 | 1,090 |
| Ram speed | in/min | 118 | 118 |
| Maximum hydraulic oil pressure | psi | 2,900 | 5,075 |
| Maximum hydraulic oil flow | gpm | 66 | 106 |
| Extraction distance (each stroke) | in | 29.5 | 19.7 |

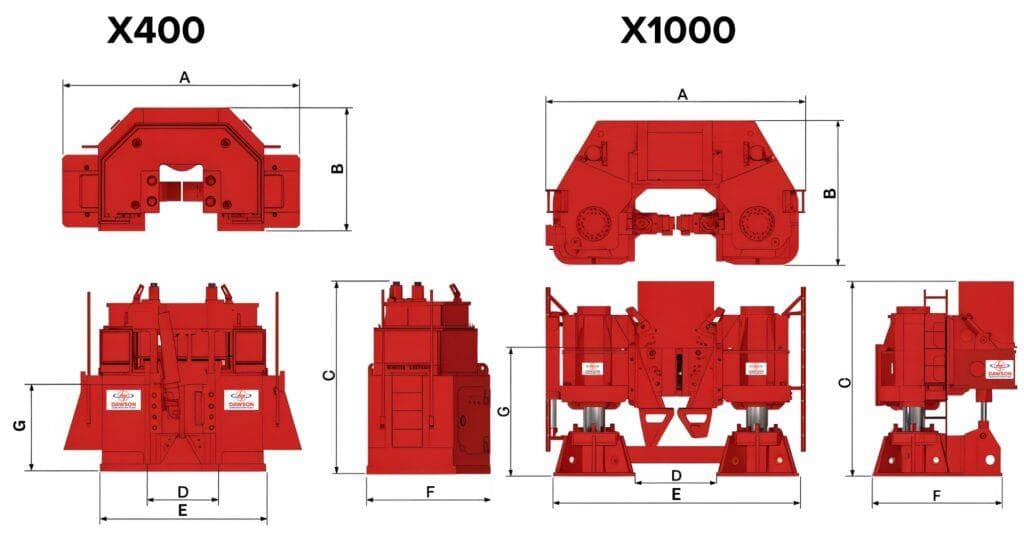

| Dimension | Units | X400 | X1000 |
|---|---|---|---|
| Dimension A | mm | 3,295 | 3,780 |
| Dimension B | mm | 1,700 | 2,100 |
| Dimension C - retracted | mm | 2,225 | 2,650 |
| Dimension C - extended | mm | 2,975 | 3,150 |
| Dimension D | mm | 995 | 1,180 |
| Dimension E | mm | 2,295 | 3,580 |
| Dimension F | mm | 1,700 | 1,900 |
| Dimension G | mm | 1,200 | 1,524 |
| Total weight | kg | 16,000 | 26,500 |
