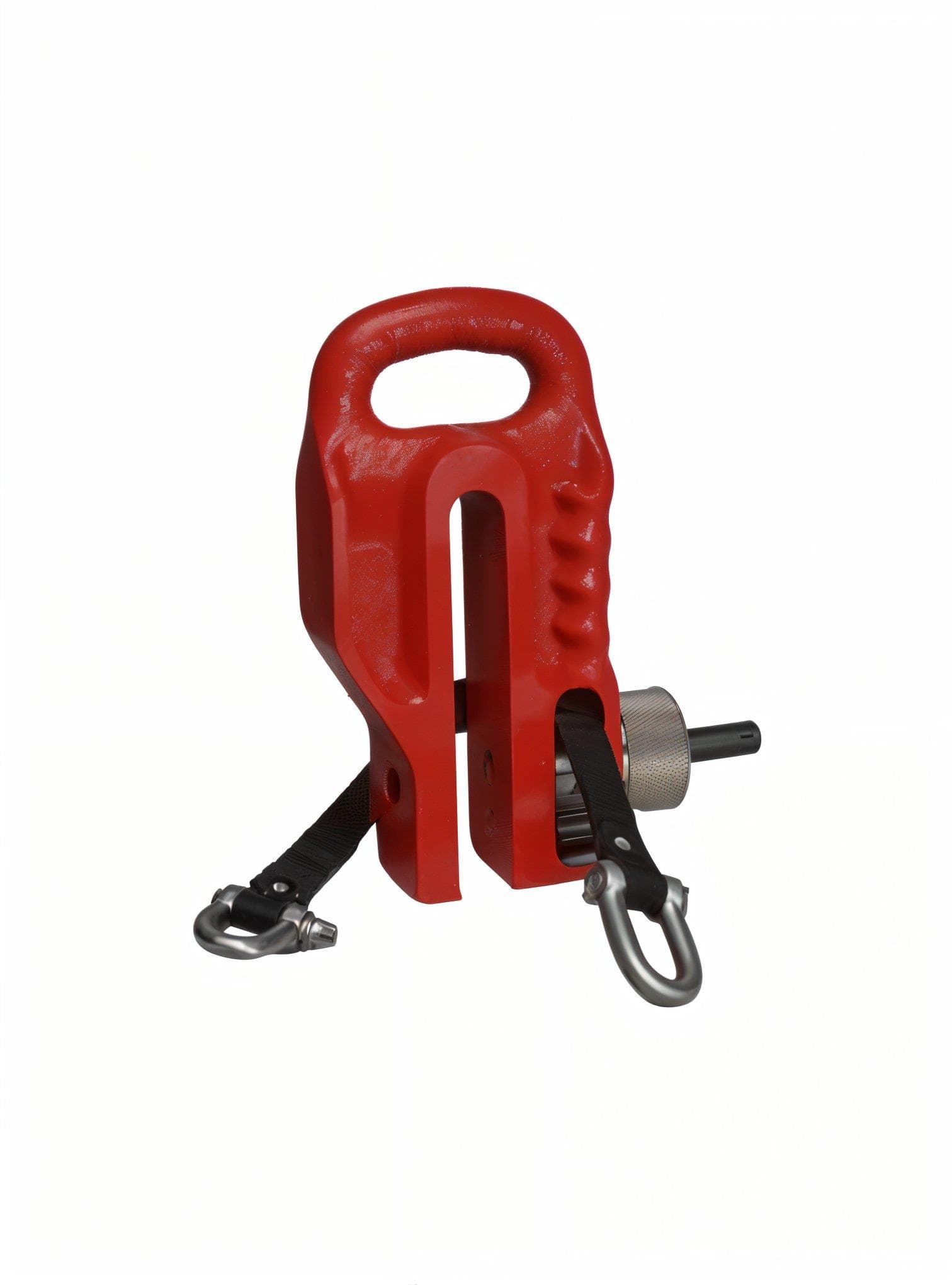

Euro Ratchet Release Shackle (ERRS)
Designed for maximum safety, efficiency, and durability, the Remote Ratchet Release Lifting Shackle eliminates the need for workers to enter hazardous positions to release lifting attachments. Engineered with contractor-proven reliability, it enhances “Feet on the Ground” safety practices in steel erection and pile installation.
Key Benefits:
Hands-Free Release – No need for operatives to enter dangerous positions to detach the lifting shackle.

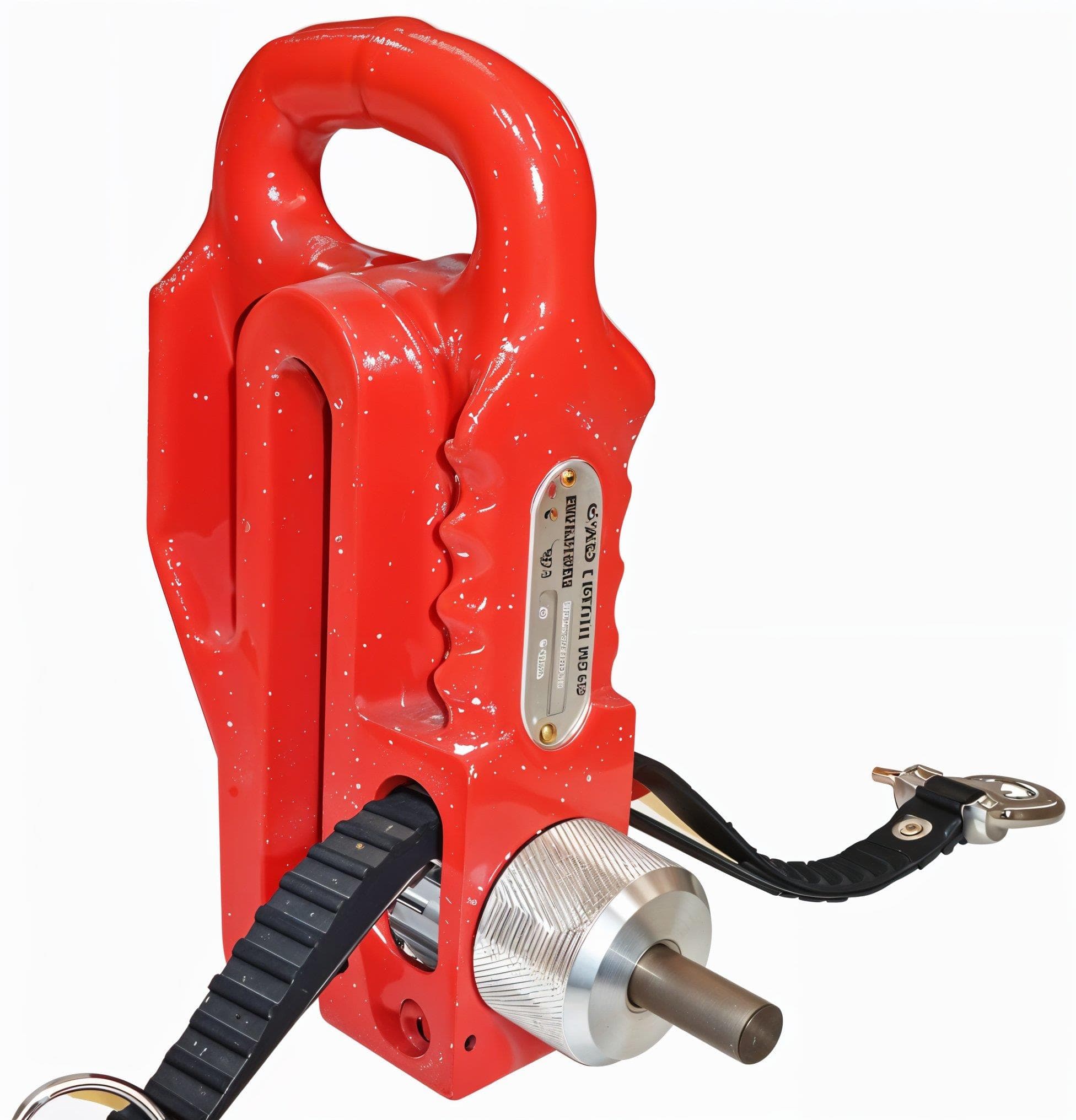

Heavy-Duty & Reliable – High-strength cast steel body with a concealed pin mechanism for maximum protection.

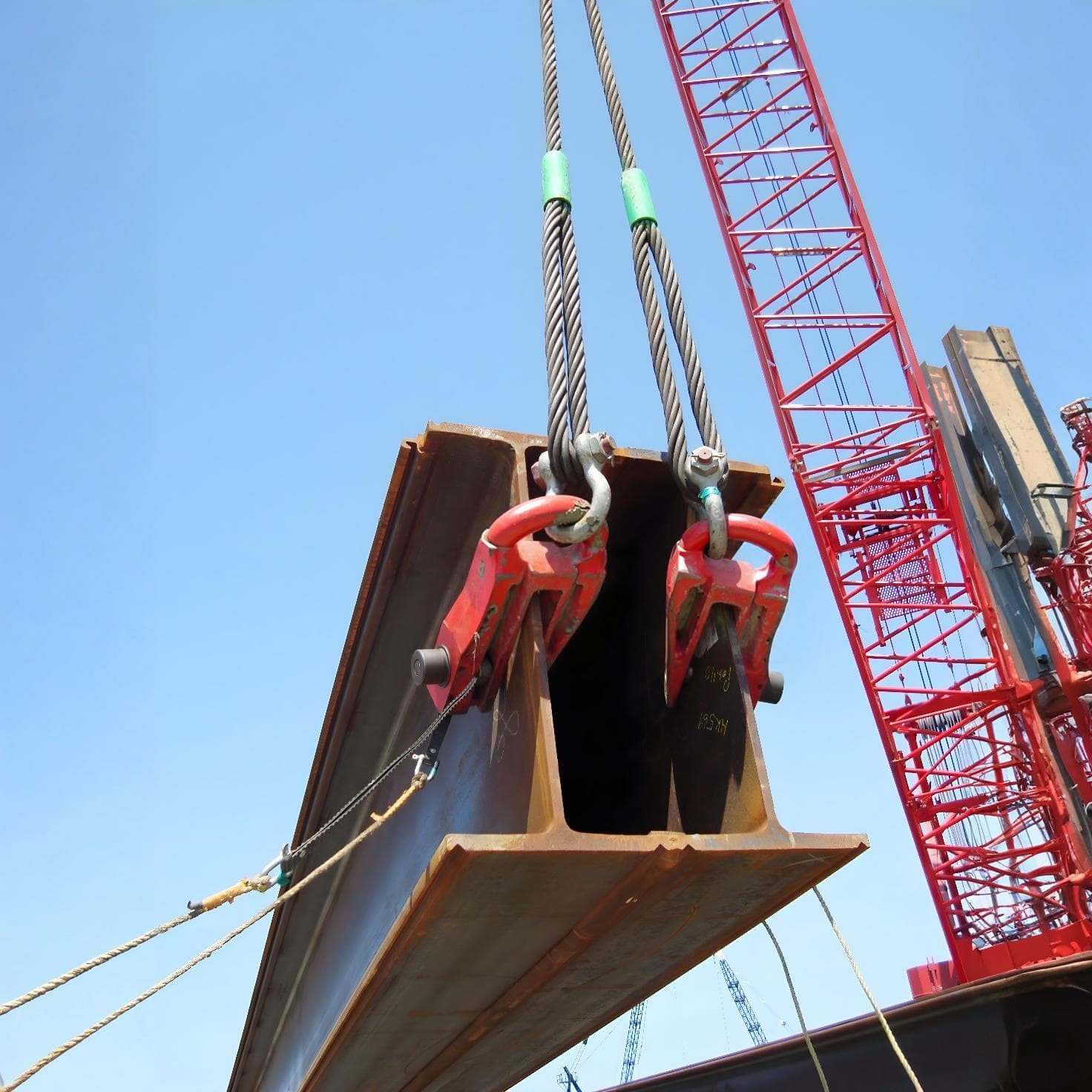

Versatile Lifting – Securely lifts steel columns, pipe piles, sheet piles, and steel fabrications through standard bolt holes.
Side Lift Stability – Stiffened forks prevent spreading under load, ensuring safe lifting at 90° to the axis.
Super Safe Design – Prevents accidental release, ensuring the pin disengages only at the correct time.
Proven Strength – Independently proof load tested to twice the Safe Working Load, with test certificates provided.
Easy Maintenance – The pin mechanism is fully detachable for quick servicing and long-term durability.

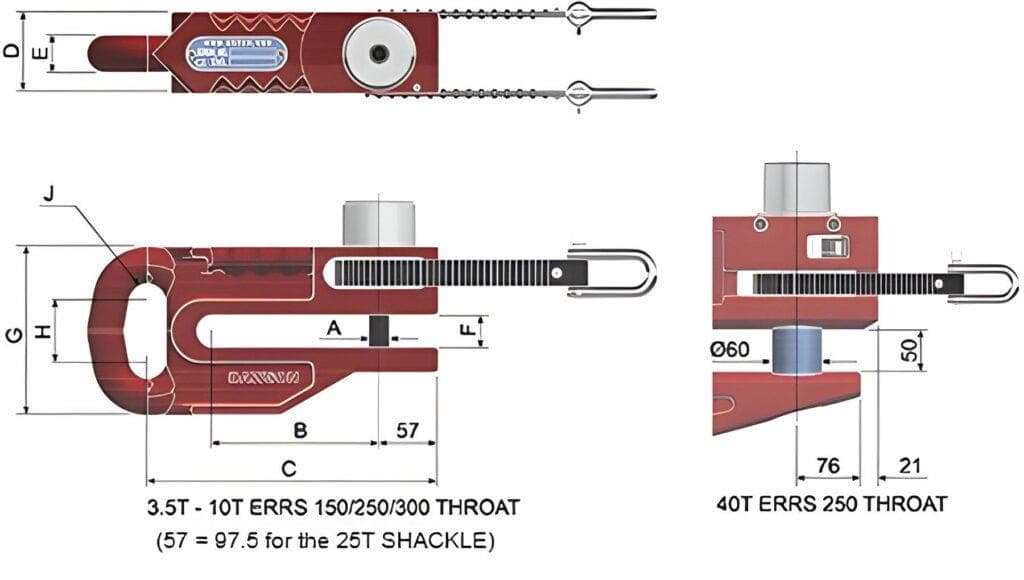

| MODEL NUMBER | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 681 | 682 | 683 | 684 | 686 | 687 | 688 | 689 | 692A | 693A | 6961 | 6962A | |
| WEIGHT kg | 15 | 19 | 15 | 19 | 19 | 15 | 19 | 15 | 22 | 22 | 48 | 67 |
| A | Ø20 | Ø20 | Ø24 | Ø24 | Ø27 | Ø35 | Ø35 | Ø27 | Ø27 | Ø35 | Ø60 | Ø60 |
| B | 158 | 258 | 158 | 258 | 258 | 158 | 258 | 158 | 303 | 303 | 250 | 239 |
| C | 277 | 377 | 277 | 377 | 377 | 277 | 377 | 277 | 360 | 360 | 423 | 457 |
| D | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 80 | 80 | 120 | 125 |
| E | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 40 | 40 | 50 | 60 |
| F | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 32 | 32 | 46 | 50 |
| G | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 202 | 202 | 231 | 280 |
| H | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 60 | 60 | 80 | 80 |
| J | R17.5 | R17.5 | R17.5 | R17.5 | R17.5 | R17.5 | R17.5 | R17.5 | R20 | R20 | R27 | R40 |
| Model Number | Description | Weight (kg) | Safe Working Load (tonne) |
|---|---|---|---|
| 681A/A | 3.5T ERRS 150 Throat General Assembly | 15 | 3.5 |
| 682A/A | 3.5T ERRS 250 Throat General Assembly | 19 | 3.5 |
| 683A/A | 5T ERRS 150 Throat General Assembly | 15 | 5 |
| 684A/A | 5T ERRS 250 Throat General Assembly | 19 | 5 |
| 686A/A | 7.5T ERRS 250 Throat General Assembly | 19 | 7.5 |
| 687A/A | 10T ERRS 150 Throat General Assembly | 15 | 10 |
| 688A/A | 10T ERRS 250 Throat General Assembly | 19 | 10 |
| 689A/A | 7.5T ERRS 150 Throat General Assembly | 15 | 7.5 |
| 692A/A | 7.5T ERRS 300 Throat General Assembly | 22 | 7.5 |
| 693A/A | 10T ERRS 300 Throat General Assembly | 22 | 10 |
| 6961A/A | 25T ERRS 250 Throat General Assembly | 48 | 25 |
| 6962A/A | 40T ERRS 250 Throat General Assembly | 67 | 40 |
